Protect Your Team and Your Fleet
Key Features:
Flexible Form Factor: Extended 5-meter cable between EV socket connector/charging plug and Smart Probe allow for measurements in hard-to-reach areas
Limit Gauge: Measurement limits to show in and out of range measurements
LED + Audible Feedback: Green and red LEDs with audible feedback on the Smart Probe indicate if a successful measurement has been taken
Precision & Accuracy: Four-wire measurement technology for equipotential bonding measurements
Wireless Connectivity: Via WIFI to connect to other applications
Safety & Compliance: Designed in accordance with ECE R 100 for Electric Vehicle inspections
Compatibility: EV socket adapters available for Type 2, Type 1 and NACS standards
Download the data sheet
$1349.99
Free Shipping
30 Day Returns
Product Overview
Ensure Roadworthiness and Passenger Safety with the EV-1000
The Fluke EV-1000 is a comprehensive, purpose-built solution for electric and hybrid vehicle safety inspections. Designed to streamline workflows, improve measurement accuracy, and enhance technician safety, the EV-1000 helps ensure your fleet vehicles are roadworthy and meet the highest safety standards—protecting both operators and passengers.
Revolutionizing Electric Vehicle Safety Inspections

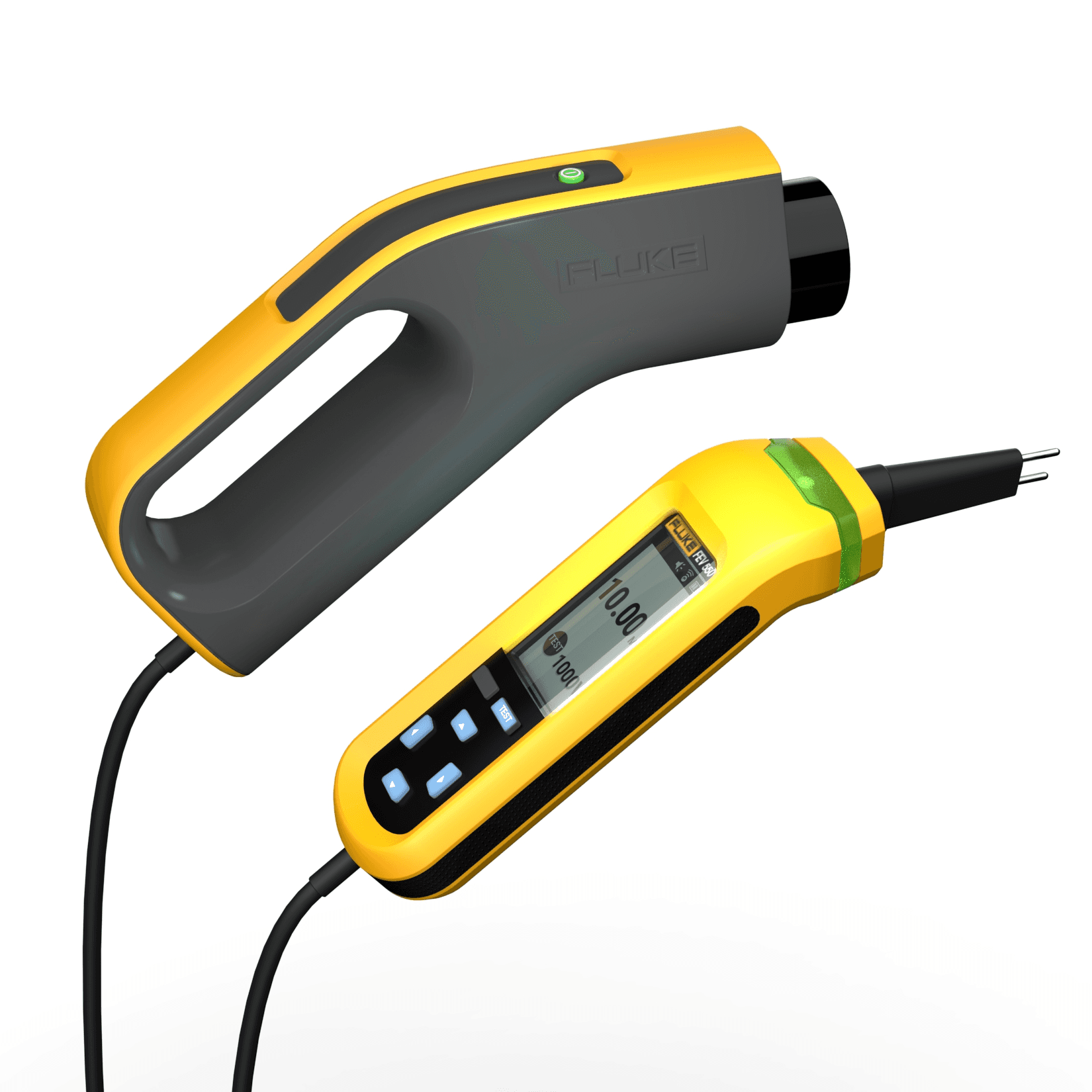

The EV-1000 simplifies and accelerates high-voltage safety testing for electric vehicles (EVs) and hybrids. The EV-1000 is a specialized EV adapter that connects directly to the vehicle’s AC charging port, enabling automated insulation resistance testing without the need to manually reposition test leads. The adapter works in tandem with the Smart Test Probe, a compact, ergonomic probe that reaches into tight engine compartments to test high-voltage components with precision. The Smart Test Probe provides immediate visual and audible feedback upon successful test completion—eliminating guesswork, reducing rework, and ensuring confidence in your inspection results.
Key capabilities
Automated insulation resistance testing of EV charging systems through the AC charging port—no need to reconfigure test leads during use

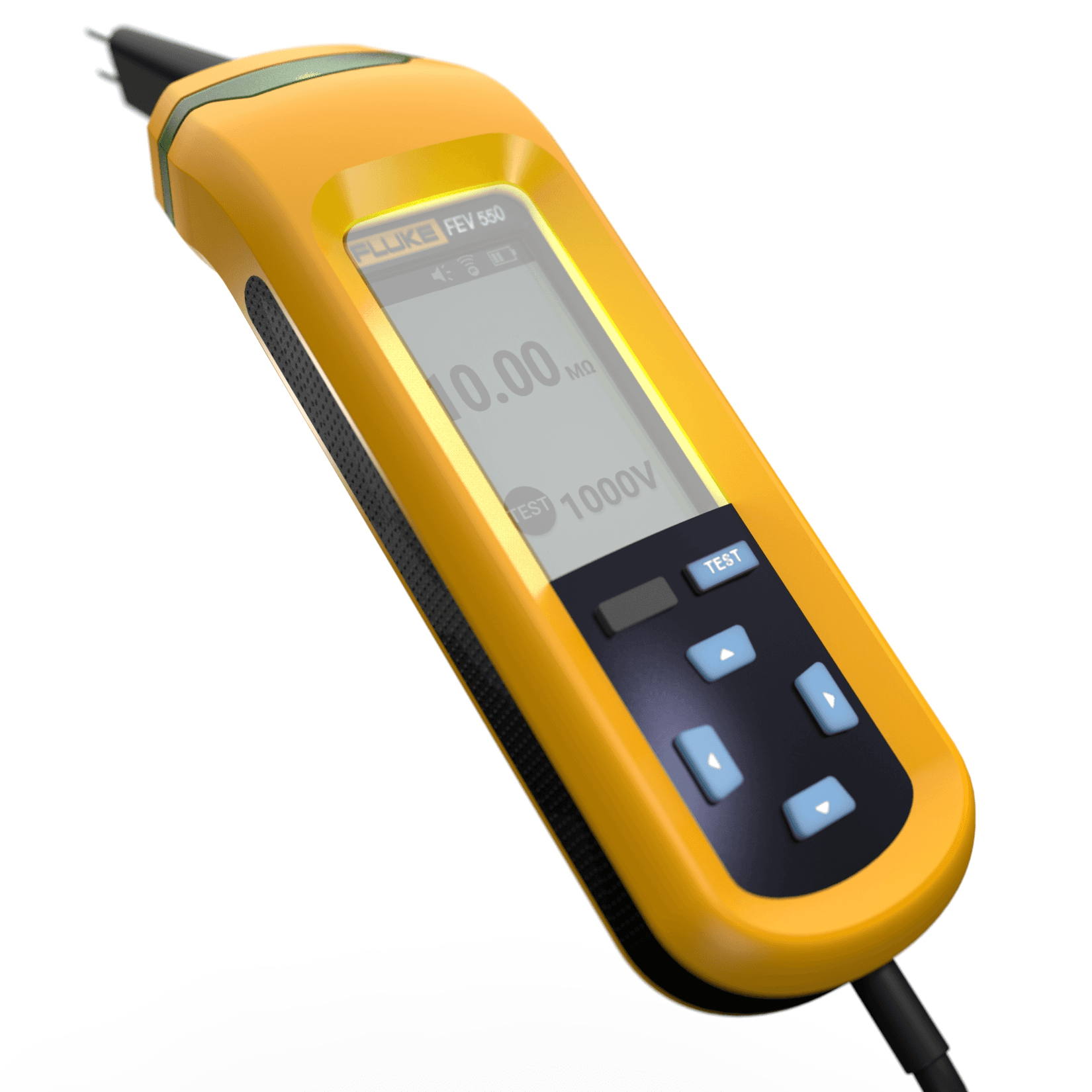

Smart Test Probe with integrated LED and audio signals confirms successful measurements instantly
Four-wire technology for accurate equipotential bonding resistance measurements, even in high-noise environments
Immobilizer mode simulates the presence of a connected EVSE, allowing technicians to safely access high-voltage systems for diagnostic testing
Built-in Wi-Fi connectivity for streamlined data logging, report sharing, and remote system updates
Compatible Accessories

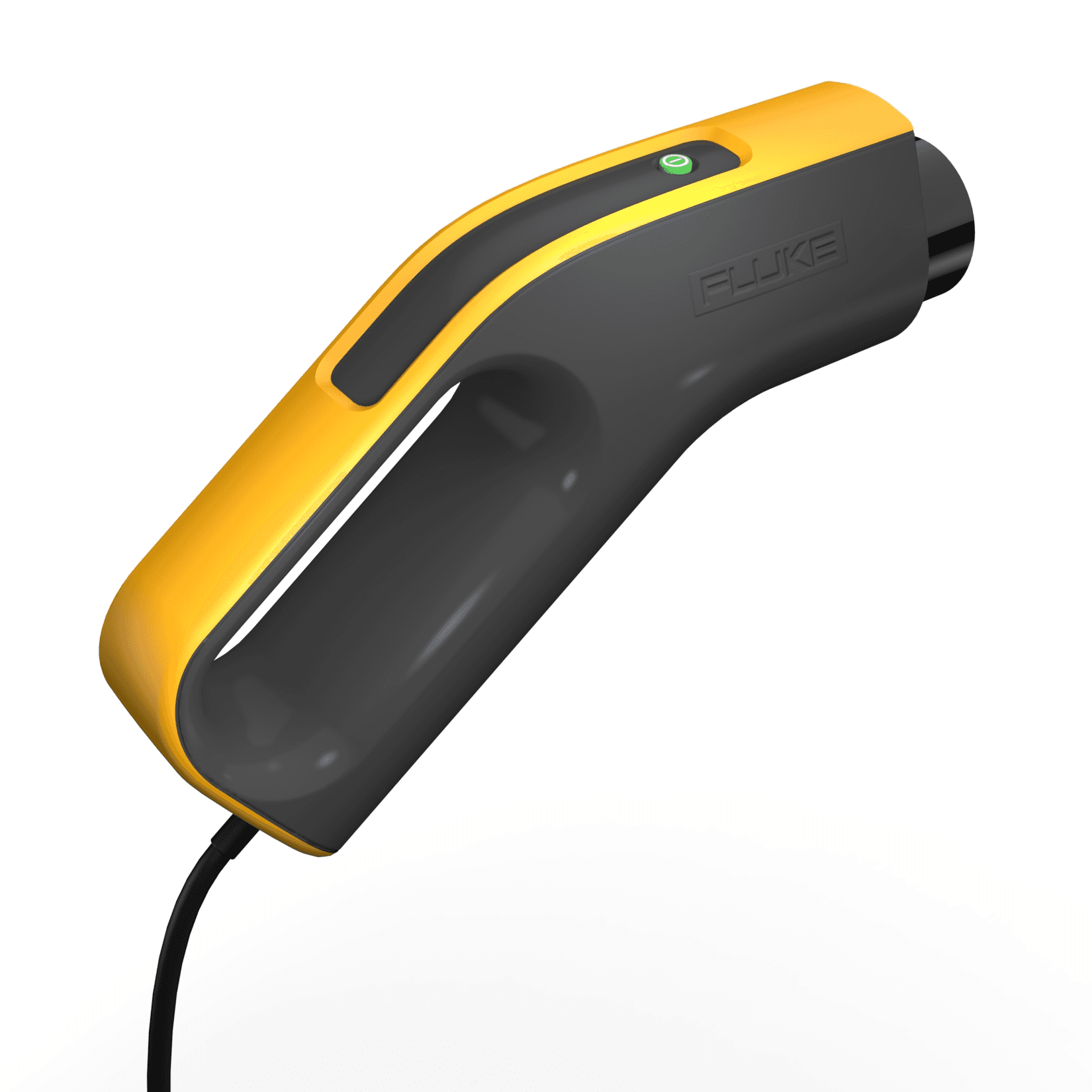

Connector adapters
Compatible with all AC charging plug standards:
Type 1 (SAE J1772)
Type 2 (IEC 62196-2)
NACS (Tesla North American Charging Standard)

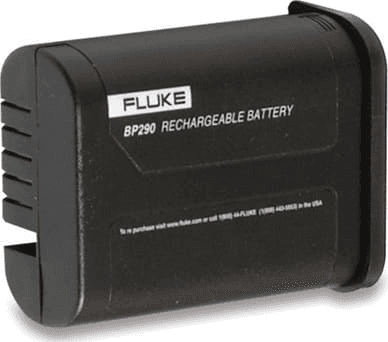

Rechargeable lithium-ion battery
Key Features:
Rechargeable within tool or on external charger
Tests up to 40 vehicles + 24 hour standby in battery mode
